Hi all,
do know IKEA Vindriktning? It is a air quality sensor with - I think nice - features which could be interesting:
It has a built in Cubic PM1006 which measures PM2.5 and some variants also PM1 and PM10.

You can buy this complete Sensor for about EUR10, so cheaper than sds011. it also uses 9600N81 4,5V signal for communication AND has serial Pads for soldering also for simple connection :slight_smile:
There are some projects, where this sensor is connected to ESP8266 (For example heise+ has one online)

So the question und suggestion would be:
How can this sensor used for your project. …
I am willing to solder, but cannot program your system or adapt it for this.

1 Like
2

This sensor needs an externally generated air flow as there is no internal fan or something.
This is okay for us cases like (mentioned in the data sheet):

  • Household air purifier
  • Automobile air purifier
  • Residential and commercial air conditioning
  • HVAC system

The air flow needed could also be created by a heat source, i.e. electronic parts. But for this we would need to design a new case, that needs to be weatherproof and directs the airflow through the sensor.
Otherwise the sensor would measure the same air all the time.

1 Like
3

Hi, it actually has a little fan inside:

https://i0.wp.com/style.oversubstance.net/wp-content/uploads/2021/08/IMG_2242.jpg?w=1920&ssl=1

4

There is indeed a fan inside. I have two of them and they are audible.

I think though that the newest device is much more interesting.

1 Like
5

Hi all,
I have 10 of those Ikea Vindriktning running.
They are connected to my WLAN and sending MQTT Data to Influx.

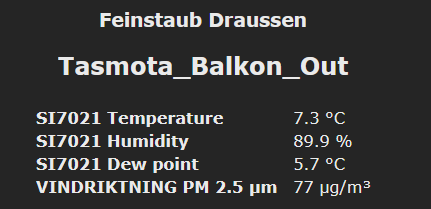

Realtime:
2023-06-10 17_51_46-DESKTOP-C2ESKAS - VNC Viewer

Of course I could upload to Sensor.Community too :slight_smile:

The used Sensor has a fan build in and detects with IR the particles.
I’m trying now a housing for outdoor use:
Björn has mase something with STL:

6

Here are the Specs of the sensor:

7

Those measurements are higher than those in the Map for the City: Krefeld
I do not understand: why is in the Map the Date / Time of the last measurement not shown ?

Very stupid those forums limitations to new users. :pleading_face:
So I can’t poste the rest of my information.
so unfortunately half of my comments are missing and so my post is incomplete.
Maybe a mod will move my profile to higher level, so I could change my posting that all it makes sense.
Thank you!

Kind Regards
Atratus

8

To the date/time of last measurements:
The map is only showing sensors that have sent data in the last 5 minutes. And the time of the last time the data was loaded is shown in the bar in the upper part of the map.

9

To the limitations for new users:
Did you ever moderate a forum? There are too many spammers outside there as that we could allow unlimited posts.
We are a volunteered project with limited resources. We can’t do a moderation 24/7.

1 Like
10

I does not see connectivity mentioned in the product docs. Seems like it is just dump LED indicator which cannot report data by the network.

11

There is no connectivity. You’ll have to hack it.
